HQ SS BOLTS

Wednesday, September 3, 2014

HQ DOOR HINGE BOLTS
I have identified 4 different types so far.
This is the most common.



Friday, August 26, 2011

(Seat recliner) Bolts Bucket seats Screws 2 types.




Seat Bolts Bucket seats Screws 2 types.
1971 to the beginning of the plastic cover used a shorter bolt approx 25mm.(silver Zinc)
1973 to the end of HQ used a 35mm screw with spring washer only(black phosphate)

Number plate holder bolts.

These bolts are on there own. They have a very thin head .
They are silver zinc.
The washers flat and spring cross over with the front and rear bar washers and are gold in colour.



Indicator lens screw.

These are the front indicator lens screws. These cross over with the rear tail light screws.
They are finished in black zinc.

Front indicator to bar screws.

These are the same for the entire HQ run. They are finished in silver Zinc
6 per car.

Front indicator clips.

These are the same over the entire HQ range. They are finished in black zinc.
6 per car. Once again they are on there own NO Crossover.


Rear bar bolts. Black zinc.

One again there are 2 types.
These are 73 74. What month the change accured who knows.

Number plate earth screw.

Please note all these screws and bolts are genuine Holden parts.
Not someones interpretation of what the are.
Lots of ebay sellers annoy me with there shit reproductions.
And whats worse the don't even know the difference.



Fuel Tank Bolts.

Here are the fuel tank mounting bolts.Once again there are 2 different types one long and one short.
The bolt is silver Zinc and the nuts are gold.
These bolts are on there own 2 per car and that's it.


Tail light screws all HQs


Here are photos of the rear taillight housing screws.
There are 2 type early 71 72 73. Late 73 and 74.
The early screw has a hex head and is silver cad or zinc.
The later screw is a Phillips head with a star washer.
The screw is silver zinc and the star washer is gold zinc.



Tail lamp clip.


These are the clip that mount the tail light housing to the bumper bar.
There are 6 per car.
Surface finish Black Zinc.
They are only used on the rear bar NO Crossover.



Wednesday, November 24, 2010

More NOS parts


Here we have upper control arm bolts. These are black in colour. Take note of rust on surface this is typical of NOS parts way overrated in my opinion.
Work has to be done to bring back that pristine original look.
These ran for the entire range from HQ through to WB. Thats a lot of bolts


Wednesday, October 28, 2009

Sunday, October 25, 2009

Axel Retainer Bolts

These are a combination of Rainbow Zinc Black Zinc and Natural Nuts.
Torque to 25- 30lbs 9/16 Head.

Friday, October 23, 2009

Booster nuts and spring washers Nuts are silver zinc and washers are rainbow zinc. Head size 9/16.
12/1972 HQ Sydney Car
Scott Wilson

Tuesday, August 11, 2009

Diff bolts

Here is a photo of the cover to diff housing bolts on a 12/1972 HQ SS Sydney Car.
THE LETTER A is present again.
Possibly the manufacture AJAX. Head size 1/2.
Scott Wilson

Saturday, August 8, 2009

Spacers and panel gaps.

If your car has front panel gap problem this is usually why. These control the cowl to bonnet gap and also your guard to front door gap. These are used in all sorts of configuration's sometimes two on one side and one on the other. These cars are quite difficult to gap so be patient with the old girls. Remember always start to gap you car from the rear quarters it is the only way it can be done correctly.

Front panel bolts

This is a front panel bolt from a 12/1972 HQ SS Sydney car. The eight that secure the top of the front apron and lock panel are in silver zinc so to are the 2 securing the fenders to the cowling. (The six inside mounting to the pillar are silver Different bolt and washer) the rest are in grey black metal finish, I have noticed all Sydney cars I have are the same.

Wednesday, July 15, 2009

Monday, July 13, 2009

Steering box bolts

Silver zinc black washers.

Friday, July 10, 2009

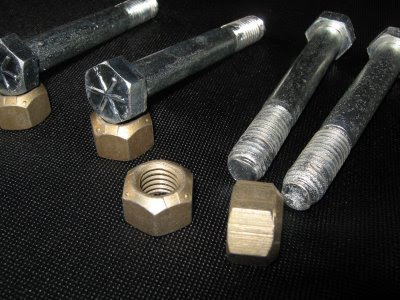

Lower control arm bolts

The lower control bolts are silver zinc and the nuts are gold zinc. Some cars have silver nuts. This 12/72 SS had gold zinc so that's how it will go back together

Thursday, July 9, 2009

Front bar bolts

The front bar bolts(bracket to frame) consist of two colours silver zinc and gold zinc(AS PER FACTORY)
There is a letter present on bolt head (S)

Frame bolts

Frame bolts there are eight of these these ones are coated in gold zinc. The reinforcement plates are finished in bare metal. We have coated ours in paint grip which is a clear flat coating and will prolong rusting. The washers are glued(contact cement as per factory) to the rubbers to inshore correct alignment on assembly.
Two more of these secure the radiator support and are no different to frame bolts. They do have a nut which can be seen in photo they are square. I have seen these in gold zinc and silver zinc this Sydney built car had gold zinc.




Saturday, June 13, 2009

HQ SS BOLTS 12/1972

This site will have a specific detailed look at the bolts and screws on this Sydney built HQ SS 12/1972.
We will look at the colours the head type and the placement of the different types.
